NUX AXON 3 STUDIO REFERENCE MONITOR

HIGHLIGHTS

– Professional-quality bi-amplified two-way monitor speakers delivering 90W RMS power for balanced performance.

– 3-inch neodymium magnet drivers for deep bass and 3/4-inch silk dome tweeters for smooth highs.

– Precise, flat, and detailed sound with low-frequency extension down to 55Hz.

– Backpack-friendly size with a maximum SPL of 107dB.

– Onboard high-resolution digital signal processing for accurate sound.

– Comes with AXON STUDIO software and an APP for customizable acoustic correction.

– Adjustable magnetic footpads for tilt and enhanced sound precision..

– Enables real-time music streaming via Bluetooth connection.

– High-dynamic USB AUDIO DAC for premium Hi-Fi audio.

– RCA unbalanced stereo inputs for vinyl systems.

– Includes 4-pin stereo link cable and power supply.

SPECIFICATIONS

– Type: Bi-amp 2-way powered reference studio monitor

– Crossover Frequency: 3kHz

– Frequency Responses: 55Hz-20kHz (-3dB) 45Hz-22kHz (-10dB)

– Tweeter: 3/4-inch silk dome

– Woofer: 3-inch neodymium magnet

– Enclosure: Specially designed long-guided bass-reflex type

– Material : ABS

– Max. SPL: 107dB

– Number of Amps : 4

– Output Power: Total 45W + 45W LF 30W HF 15W

– Input Impedance: 10k ohms /-10dBu

– Amplifiers Type: Class D

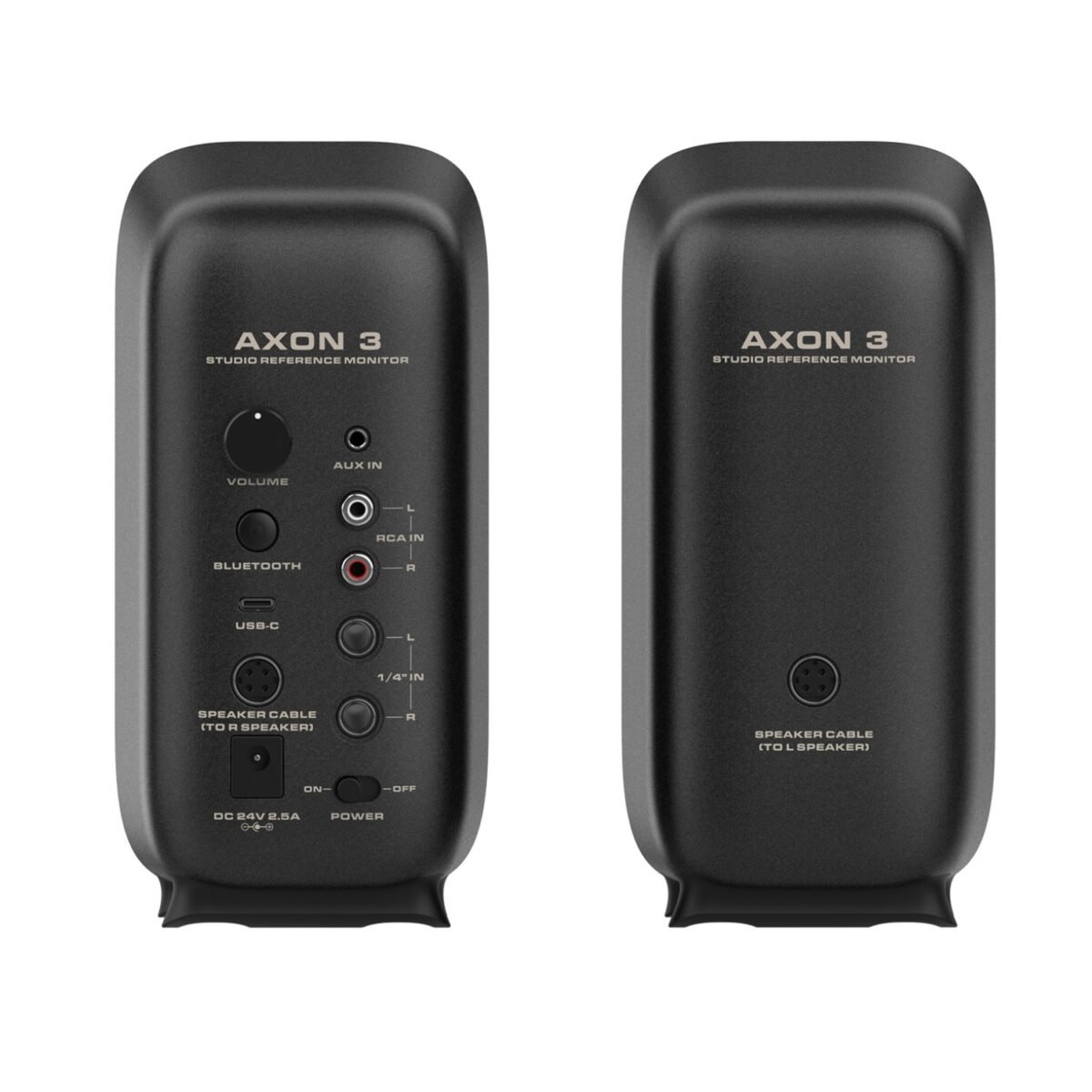

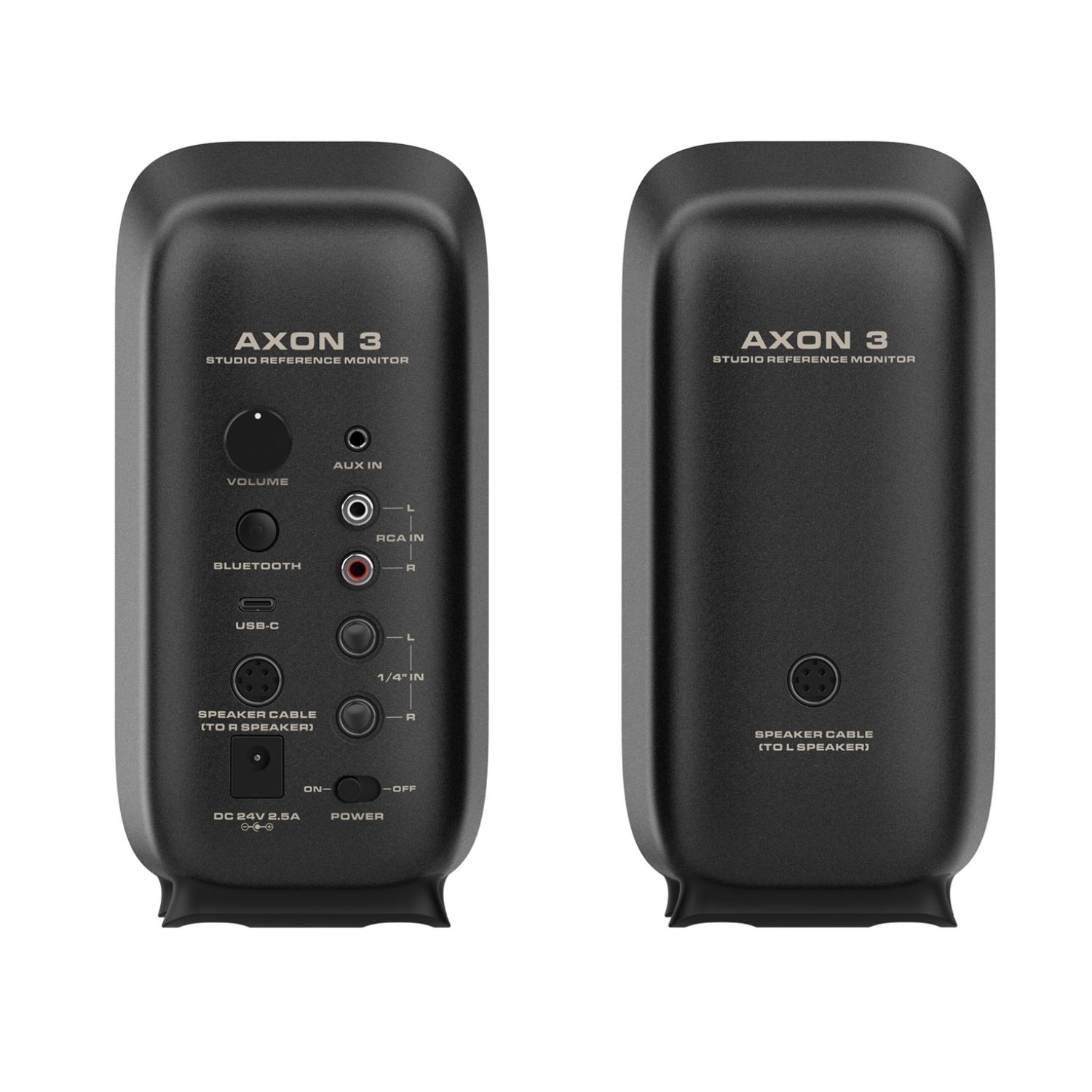

– Connectors: 2 x 1/4” TS input 2 x RCA unbalanced input 1 x 1/8” stereo AUX input 4-pin speakers connector

– Bluetooth: Bluetooth 5.0 Compatible with AVRCP Profile V1.6, A2DP Profile V1.3 and HFP Profile V1.7

– USB DAC: 48kHz 24bits

– Controls: Volume control

– Built-in DSP acoustic correction EQ, app/software controlled

– Dimensions: 204.5(L) x 9.4(W) x 150(H) mm (Single)

– Weight: 1.98kg (Pair)
